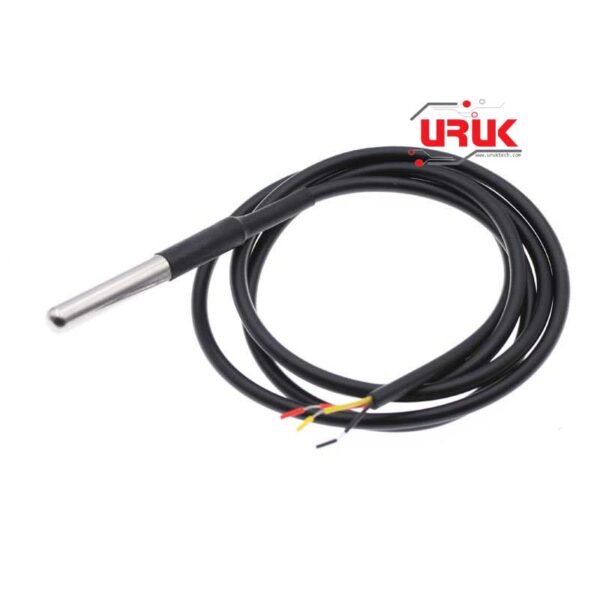

DS18B20 Stainless Steel Waterproof Temperature Sensor

Availability:

In stock


حساس حرارة مقاوم للماء يمكن استخدامه في قياس الحرارة في مختلف التطبيقات وبالاخص حرارة السوائل. نطاق قياس واسع من 55 درجة تحت الصفر الى 125 درجة مئوية فوق الصفر. يعمل بفولتية تتراوح من 3 الى 5.5 فولت، وبثلاثة اسلاك فقط وسلك واحد للربط مع اي متحكم. حيث توجد مكتبة خاصة لأستخدامه مع بوردات الاردوينو.

3,000 د.ع 3,500 د.ع

In stock

Compare

DS18B20 Stainless Steel Waterproof Temperature Sensor

DS18B20 temperature sensor probe with a new chip, the chip on each pin are separated by heat shrink tubing imported, to prevent short circuits inside sealed plastic. It has a Wide temperature range of -55 ‘C ~ + 125 ‘C with No external components and the unique single bus interface. For each lead, we use 30pcs tinning lines, which is different from other DS18B20 sensor wires, it is soft and has better oxidation resistance ability.

Specifications:
– Length of Cable: 100cm
– Size of Stainless steel sheath: 6x50mm
– Power supply range: 3.0V to 5.5V
– Operating temperature range: -55°C to +125°C (-67°F to +257°F)
– Storage temperature range: -55°C to +125°C (-67°F to +257°F)
– Accuracy over the range of -10°C to +85°C: ±0.5°C.
– Waterproof
– Flexibility resistance
– Better thermal conductivity.
– Output leads: Yellow (VCC), Red (DATA), Black (GND)

Package Includes:
1 x DS18B20 Temperature Sensor

SKU: 176 Category: Tag:
  • Length of Cable: 100cm
  • Size of Stainless steel sheath: 6x50mm
  • Power supply range: 3.0V to 5.5V
  • Operating temperature range: -55°C to +125°C (-67°F to +257°F)
  • Storage temperature range: -55°C to +125°C (-67°F to +257°F)
  • Accuracy over the range of -10°C to +85°C: ±0.5°C.
  • Waterproof
  • Flexibility resistance
  • Better thermal conductivity.
  • Output leads: Yellow (VCC), Red (DATA), Black (GND)
