Dual USB 5V 2.1A Power Module with LCD and Automatic Protection
– This is the mobile power module Accessories, 18650 Circuit board shell.
– Meet the individual needs of your DIY, but you must understand basic electronic assembly.
– Board comes with protection function: Charging overcharge protection, over-discharge protection, overcurrent protection.
– Intelligent output device after charging full, automatically stop charging, to prevent mobile phones overcharge. Output voltage and current stable, will not harm user devices.

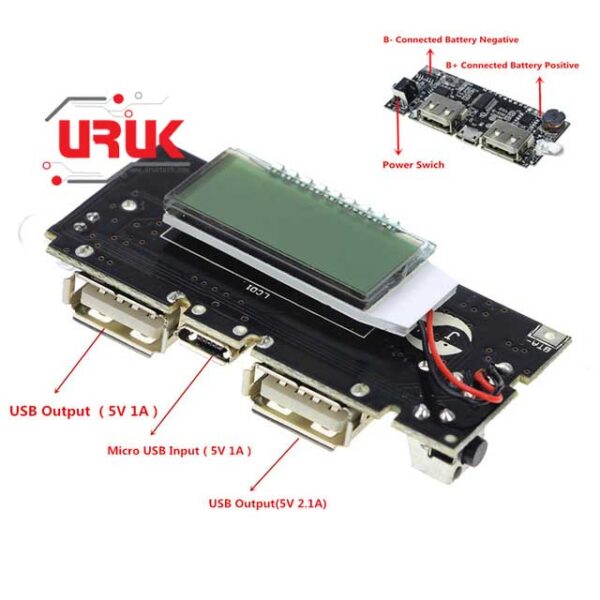

– Micro USB input: 5V 1A
– USB Output: 5V 2.1A / 5V 1A (Dual USB interface)

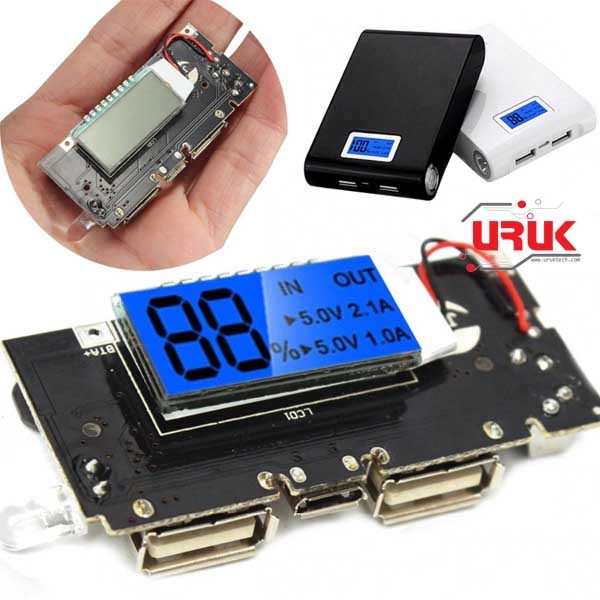

– Charging display: intelligent digital display
– Batteries Type: lithium-ion batteries

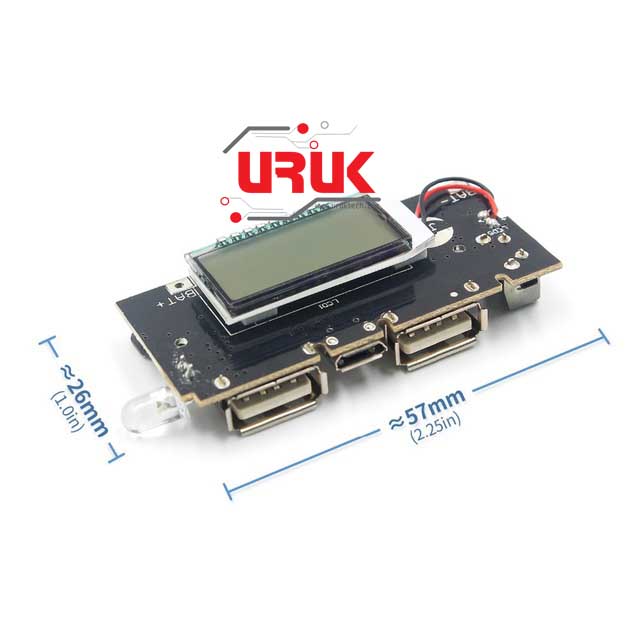

– Product Size: 57mm x 28mm
– Screen size: 27mm x 17mm
The circuit board is connected to the battery negative B-, B + is the positive, do not connecting reversed, connecting reversed will burn the board, the battery is connected in parallel welding, assembling battery. Note that the insulation between the battery and the circuit board, battery lead not to touch the circuit board, so as not to cause a short circuit.
1 x Dual USB 5V 2.1A Power Module
