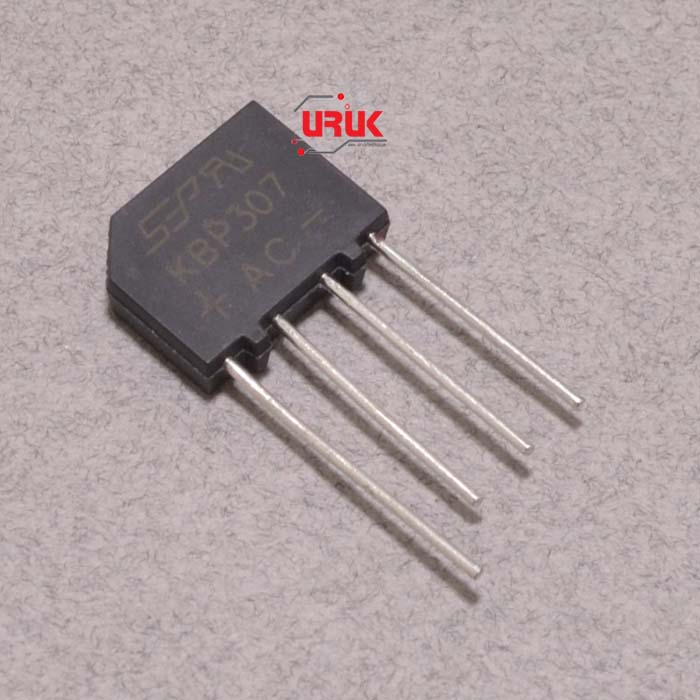

750V 3A Diode Bridge Rectifier KBP307
A bridge rectifier is used to convert alternating current (AC) to direct current (DC). Bridge rectifiers are constructed from at least 4 diodes and are a major component of most basic AC/DC power supplies. This specific bridge rectifier can handle up to 3A and a peak reverse voltage of up to 700V. The rectifier measures 29.7 x 14.7 x 3.7mm overall, but only 12 x 14.7 x 3.7mm excluding the legs.
- Small size
- High case dielectric strength
- Typical IR less than 0.1uA
- This KBP307 bridge rectifiers is Ideal for printed circuit board
- High temperature soldering guaranteed
Diode Type: Single Phase
Maximum Average Forward Rectified Current: 3A
Current – Average Rectified (Io): 125 mA
Voltage – Forward (Vf) (Max) @ If: 1.1 V @ 3 A
Current – Reverse Leakage @ Vr: 10 µA @ 750 V
Operating Temperature: -55°C ~ 150°C (TJ)
Mounting Type: Through Hole
Dimension: Approx. 15 x 11 x 5 (L x W x T)
To use this part simply connect your positive DC line to the “+”, the negative / ground to the “-”, and each of the AC lines to one of the “AC” Pins.
See the datasheet
1 x KBP307 Diode Bridge Rectifier
