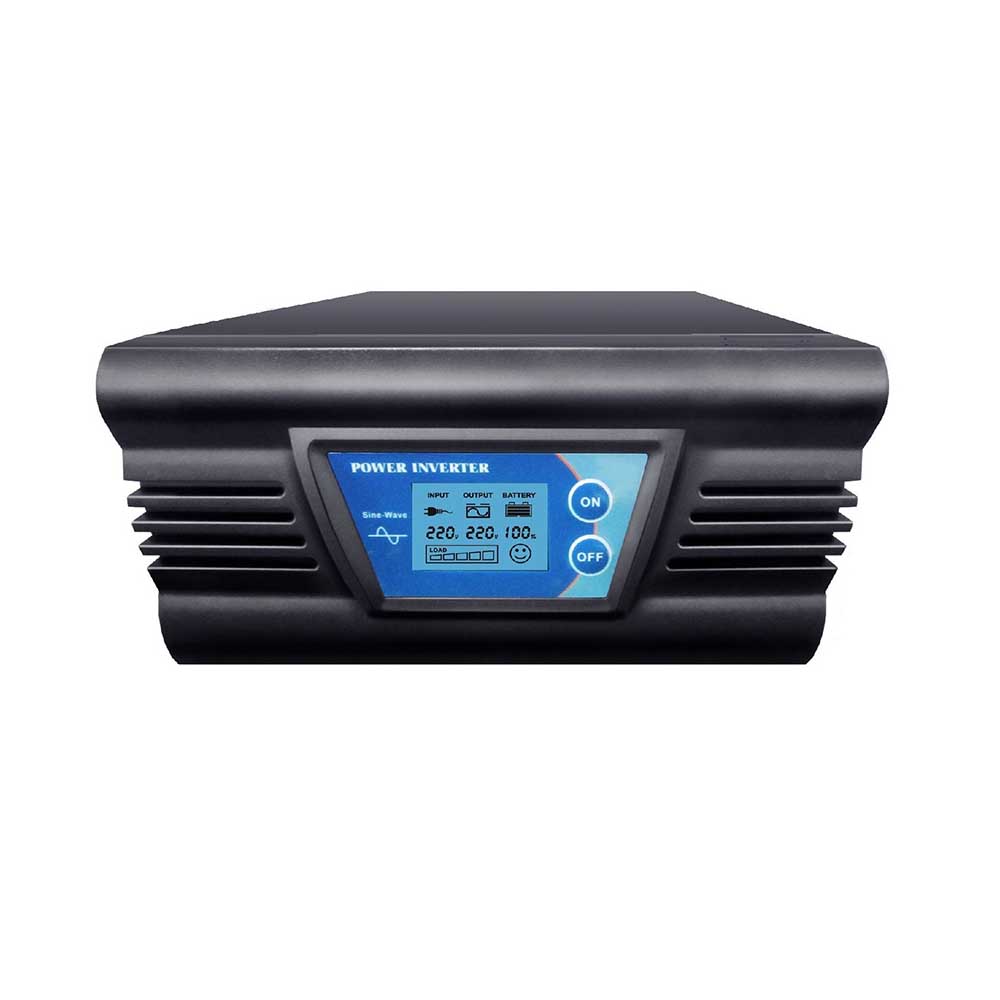

Pure Sinewave Inverter with Charger 12VDC 600W

Availability:

Out of stock


عاكسة (Inverter) أصلية بمواصفات صناعية وبإخراج Pure Sinewave مع شاحن داخلي لشحن البطارية. تستخدم لتحويل طاقة بطارية 12 فولت الى تيار كهربائي بجهد 220 فولت وبقدرة 600 واط. تتميز العاكسة بقدرتها العالية في الحفاظ على فولتية اخراج ثابتة ومستقرة وهو ملا تستطيع أجهزة الـ UPS الاعتيادية فعله إضافة الى مميزات الحماية من تيار الحمل العالي والشورت سيركت والفولتية العالية والواطئة والحماية من ارتفاع درجة الحرارة مع مميزات شحن البطارية بوضعيتين مختلفتين لضمان الحفاظ على عمر البطارية من الشحن الزائد او التفريغ المفرط. تحتوي العاكسة على شاشة لمتابعة جميع تفاصيل التشغيل مع صوت تنبيه في بعض الحالات ويمكن تغيير الاعدادات ايضاً من خلالها. تحتوي ايضاً على مروحة تهوية تعمل بشكل تلقائي حسب وضع الحرارة والتشغيل في العاكسة بالإضافة الى الكثير من المميزات الأخرى التي يمكن قراءتها في مواصفات المنتج.

200,000 د.ع

Out of stock

Compare

Pure Sinewave Inverter with Charger 12VDC 600W

This inverter designed to work and protect PC equipment in extremely hostile power environments where other UPS simply cannot operate. An extra wide input AVR conserves battery for added security. Includes and advances Multi-stage surge suppressor can protect from surges, and spikes via fax or DSL lines.

Features

  • Pure sine-wave output, can be used with different domestic appliances: TV, refrigerator, fan, air conditioner, induction cooker, micro-wave oven etc.
  • Superior performance from CPU control technology.
  • Wide range of input voltage, accurate output, AVR function.
  • Inner-equipped protection for over-load, short-circuit, over-voltage, low-voltage over-heating etc. Easy to check with inverter condition.
  • Generator compatibly and external battery connection achievable.
  • Intelligent battery management with protection against over-charged and over-discharged etc.



Specifications
Rated Capacity: 300W
Nominal Voltage: 200/220/230/240V Selectable
Input Frequency: 47Hz ~ 65Hz, 50/60Hz auto-sensing
Efficiency: 95% (Normal mode)
Noise Filtering: Full time EMI/RFI filtering
Over current protection: By re-settable over current protector
Voltage Range: – 35% ~ +25% for selected nominal voltage.
Surge Protection: 324 Joules
Waveform: Sine wave
Crest Factor: 3:1
Output Frequency: Auto Select for 50/60Hz, 47Hz ~ 55Hz for 50Hz nominal; 56Hz ~ 65Hz for 60Hz nominal
Regulation (Nominal): ±10% typical of normal voltage (optional at ±8% AVR for wide I/P up to ±35%)
Transfer time: Typical: 5ms (Including detection time)
Over current protection: Overload alarm level 100% ~ 120%; Overload shutdown level 120% ~ 190% (Adjustable by using the remote set-up software)
Battery type: Sealed, maintenance-free lead acid
Voltage: 300W-1000W:DC12V
Charging method: Smart pulse charging with two charging modes: Quick charging when battery is not fully charged, trickle charging when battery is 90% fully charged.
Charging current: 10A, at normal temperature
Average charging: Quick charging mode 14V maximum / Trickle charging mode 13.2V ~ 13.9V adjustable
Protection: Discharge, overcharge, and overload protection
Control panel LCD: UPS status, I/P&O/P Voltage Frequency, Load, Battery Voltage, Temperature
Audible alarm: Battery Mode: Beeping every 4 seconds; Low Battery: Beeping every second; Overload: Beeping twice per second
Cooling fan control: Auto on / off, controlled by temperature & operation mode
Transit/storage Temperature: -20℃ to 55℃
Relative Humidity: 0 – 95% non-condensing
Audible noise: ≦55 dBA at 1m
Size(H×D×L): 375mmx130mmx190mm
Net Weight/ Gross (kg): 10.5/11(kg)

Package Includes:
1 x Pure Sinewave Inverter with Charger 12VDC 600W

SKU: M008 Categories: , ,

Rated Capacity: 300W
Nominal Voltage: 200/220/230/240V Selectable
Input Frequency: 47Hz ~ 65Hz, 50/60Hz auto-sensing
Efficiency: 95% (Normal mode)
Noise Filtering: Full time EMI/RFI filtering
Over current protection: By re-settable over current protector
Voltage Range: – 35% ~ +25% for selected nominal voltage.
Surge Protection: 324 Joules
Waveform: Sine wave
Crest Factor: 3:1
Output Frequency: Auto Select for 50/60Hz, 47Hz ~ 55Hz for 50Hz nominal; 56Hz ~ 65Hz for 60Hz nominal
Regulation (Nominal): ±10% typical of normal voltage (optional at ±8% AVR for wide I/P up to ±35%)
Transfer time: Typical: 5ms (Including detection time)
Over current protection: Overload alarm level 100% ~ 120%; Overload shutdown level 120% ~ 190% (Adjustable by using the remote set-up software)
Battery type: Sealed, maintenance-free lead acid
Voltage: 300W-1000W:DC12V
Charging method: Smart pulse charging with two charging modes: Quick charging when battery is not fully charged, trickle charging when battery is 90% fully charged.
Charging current: 10A, at normal temperature
Average charging: Quick charging mode 14V maximum / Trickle charging mode 13.2V ~ 13.9V adjustable
Protection: Discharge, overcharge, and overload protection
Control panel LCD: UPS status, I/P&O/P Voltage Frequency, Load, Battery Voltage, Temperature
Audible alarm: Battery Mode: Beeping every 4 seconds; Low Battery: Beeping every second; Overload: Beeping twice per second
Cooling fan control: Auto on / off, controlled by temperature & operation mode
Transit/storage Temperature: -20℃ to 55℃
Relative Humidity: 0 – 95% non-condensing
Audible noise: ≦55 dBA at 1m
Size(H×D×L): 375mmx130mmx190mm
Net Weight/ Gross (kg): 10.5/11(kg)
