Portable Smart Tweezers Signal Generator Debugging Tool with OLED Display
This smart multimeter made of fine quality material, practical, easy to operate and use, has a long service life.
- The three-section split structure of the tweezers shape can be split into the controller, the measuring arm and the tweezers head, which overturns the appearance restrictions of the traditional measuring instrument.
- OLED screen, 360-degree adjustable window, to meet different viewing angles.
- Intelligent attitude judgment, automatically distinguish left and right hand operation and switch screen display direction.
- The controller adopts hidden touch buttons, light touch to shift gears, simple operation.

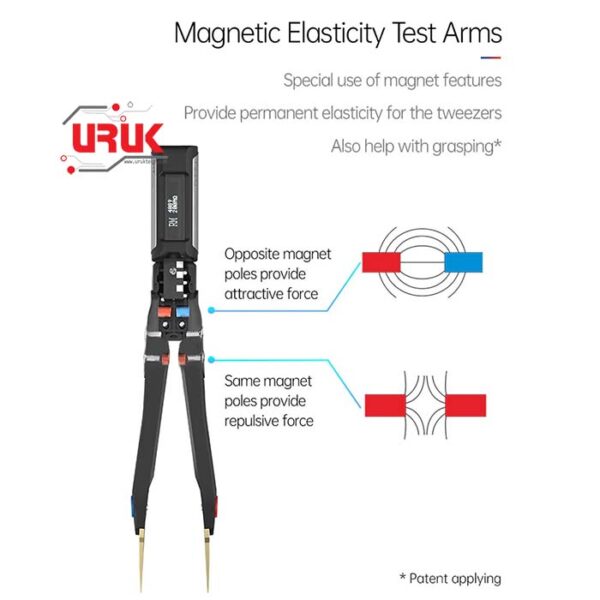

- The measuring arm has magnetic elasticity, patented design, permanent magnetism, and ergonomics.
- The measuring arm has a built-in double lithium battery with large capacity, balanced force, can be charged separately, and standby for a long time.
- The gold-plated tweezers head can be exchanged to adapt to various usage scenarios.
- Abundant automatic measurement functions: resistance, capacitance, inductance, voltage, frequency, diode.

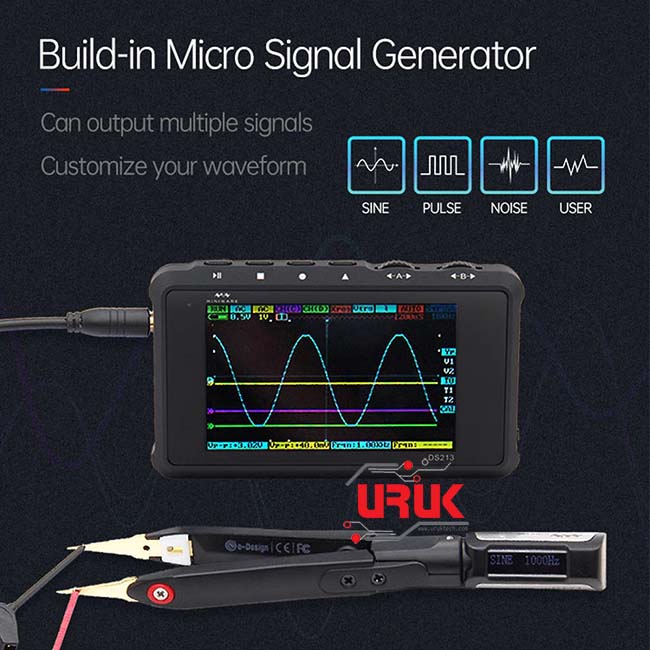

- Built-in miniature signal generator, which can output various waveform signals (sine wave, noise wave, pulse wave, arbitrary wave).
Battery: 2 x lithium battery, 50mAh 3.7V(included)
Display: 96×16 OLED
Operation: hidden touch button
Max input voltage: -5V to +50V
Resistance Measurement: 0.1 ohm -2M Ohm
Capacitance Measurement: 0.1pF – 400uF
Inductance Measurement: 1uH -50mH
Source impedance: 1MΩ
Controller size: 47mm
Test arms size: 106mm
Item weight: 22g
1 x DT71 Control Terminal
1 x USB Cable
1 x Measuring Arm
1 x Portable Pod
2 x Tweezers Head
