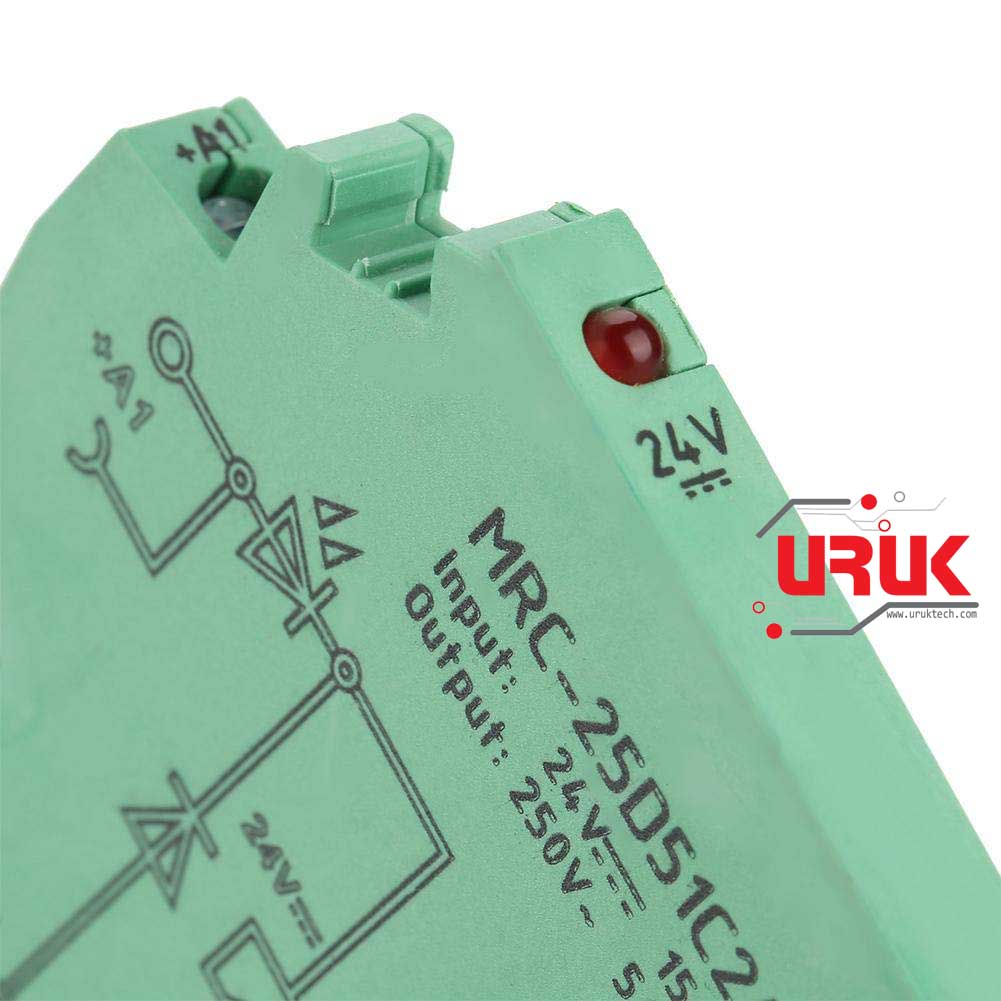

24V MRC Electromagnetic DIN Rail Interface Relay

Availability:

In stock


Compare

ريلي 24V بمواصفات صناعية، سمكه اقل من سمك موبايل اي فون 6S! بوزن 30 غم وقدرة تحمل في دائرة الاخراج 5 امبير ويحتوي على LED اشارة في حال عمل الريلي ويحتوي على دائرة حماية داخلية في حال تم ربط ملف الريلي بالاتجاه المعاكس. الريلي مخصص للتثبيت في سكك البوردات الكهربائية ومناسب جدا لتطبيقات السيطرة والتحكم الألي PLC حيث يتسخدم لتشغيل الأنظمة الكهربائية عبر الـ  PLC.

16,500 ع.د

In stock

24V MRC Electromagnetic DIN Rail Interface Relay

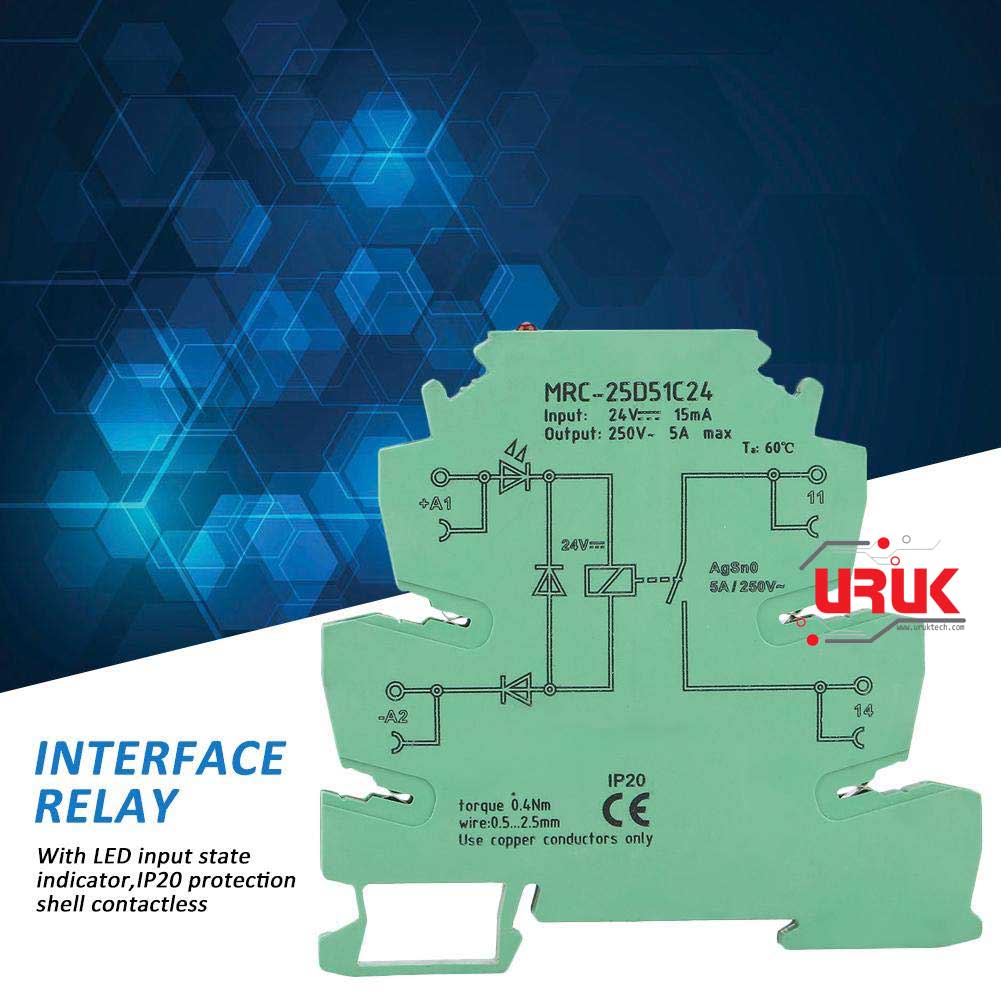

Our ultra slim relay saves 80% of installation space than traditional relay, overall shrinkage volume is suitable for space-sensitive cabinets, automation equipment, electrical machinery and smart home. 6.2mm in width is thinner than iPhone 6S, combined with the light weight of below 30g, it provides the most economic and efficient solutions. It can also use the trendy plug-in type fast connector to achieve fast connection which saves 60% time, the blade-shaped fast connector is plugged in the V shaped port, done. Built-in protection circuit loop, freewheeling diode, polarity anti reverse connect protection diode, and electric surge protection parts protect interface module and guarantee its reliability.

Features:
– 6.2mm Ultra slim shrinkage volume, which saves 80% installation space
– Red LED working status indicator, clear port mark
– Screw connection, alternative bridge connector for fast connection, convenient 35mm DIN rail compatible with international standard. Bridge connector is sold separately
– Internal input/output polarity protection circuit, no electrical wear, and long electrical life

Specifications:
– Model Number: MRC-25D51C24
– Output Current:  5A
– Output Voltage Range: 5-250V DC/AC
– Input Loop: Red LED, Input Polarity Protection
– Pull-in Time: le10/5ms
– Contact Material: AgSnO2 (1NO)
– Input Voltage Range: 24VDC
– Input Current: 12mA
– Input/output Isolation Voltage: 4kV (50Hz, 1min)
– Ambient Temperature: -20℃~+60℃,-4℉~140℉
– Operative Standard: IEC 60664, EN50178, IEC62103
– Applicable Wire: (Rigidity) 0.2-2.5mm2, (Flexibility) 0.2-2.5mm2, (AWG) 24-14
– Size: 81X6.2X78mm
– Net weight: Approx.30g

Package Includes:
1 x 24V MRC Electromagnetic Relay

SKU: 355 Categories: ,
  • Model Number: MRC-25D51C24
  • Output Current:  5A
  • Output Voltage Range: 5-250V DC/AC
  • Input Loop: Red LED, Input Polarity Protection
  • Pull-in Time: le10/5ms
  • Contact Material: AgSnO2 (1NO)
  • Input Voltage Range: 24VDC
  • Input Current: 12mA
  • Input/output Isolation Voltage: 4kV (50Hz, 1min)
  • Ambient Temperature: -20℃~+60℃,-4℉~140℉
  • Operative Standard: IEC 60664, EN50178, IEC62103
  • Applicable Wire: (Rigidity) 0.2-2.5mm2, (Flexibility) 0.2-2.5mm2, (AWG) 24-14
  • Size: 81X6.2X78mm
  • Net weight: Approx.30g
