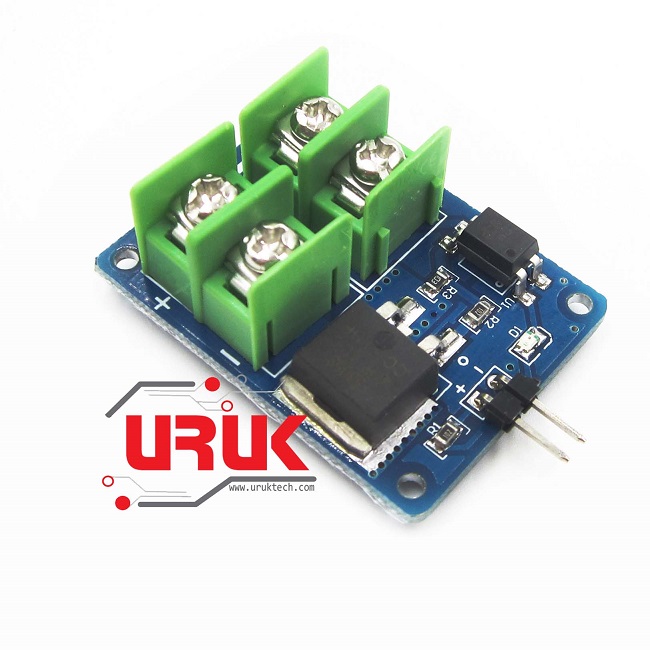

36V E-Switch MOSFET Module

This module can be used up to 36V allows the load, such as LED lights, DC motors, miniature pumps, solenoid valves. PWM dimming LED can be used to achieve step less dimming, and variable speed motor.

Speceifications:
– Input control voltage: 3.3V-5V
– Output Voltage: 5-36V
– Board use of Opto-isolated completely separated from the 2-terminal voltage.
– Input is controlled by a 2 pin; a ground control can be directly connected to the control switch.
– Control current: 1-5mA.
– Maximum current: 22A (more than 5A need to add a heat sink)
– Board with LED lights
– Host input and output screw terminal block
– Control terminal using 2.54mm pin, easy wiring.
– Control can be directly connected microcontroller IO.
– Board size: 4.2 X 2.6 cm

Applications:
PWM control motor speed, the brightness of lights and so on. Note that large current need to add additional heat sink

Package Includes:
1 x E-Switch 36V MOSFET Module

SKU: 300 Category:
  • Input control voltage: 3.3V-5V
  • Output Voltage: 5-36V
  • Board use of Opto-isolated completely separated from the 2-terminal voltage.
  • Input is controlled by a 2 pin; a ground control can be directly connected to the control switch.
  • Control current: 1-5mA.
  • Maximum current: 22A (more than 5A need to add a heat sink)
  • Board with LED lights
  • Host input and output screw terminal block
  • Control terminal using 2.54mm pin, easy wiring.
  • Control can be directly connected microcontroller IO.
  • Board size: 4.2 X 2.6 cm
