3S 20A Li-ion Li-Po Battery 18650/26650 Charging BMS Protection Board 12.6V

(3 customer reviews)
Availability:

In stock


بورد شحن بطاريات نوع ليثيوم ايون وليثيوم بوليمر عدد 3 او اكثر (على التوازي) مع خاصية الحماية ومعادلة الشحن بينها Charging Balance وتقنية ادارة الشحن BMS، يعمل بورد الشحن على 12.6 فولت ويمكن شحن بطاريات بطاقة 252 واط، اي لغاية 20 امبير.

5,000 ع.د

In stock

3S 20A Li-ion Li-Po Battery 18650/26650 Charging BMS Protection Board 12.6V

Features:
– Suitable range: For nominal voltage 3.6V 3.7V lithium battery (Including 18650, 26650, lithium polymer batteries)
– Technology: Battery Management System
– Product Size: 64mmx20mmx3.4mm
– Material: Metal
– Charging voltage: 12.6V
– Maximum output current: 20A
– Maximum output power / charging power: 252W

Notes:

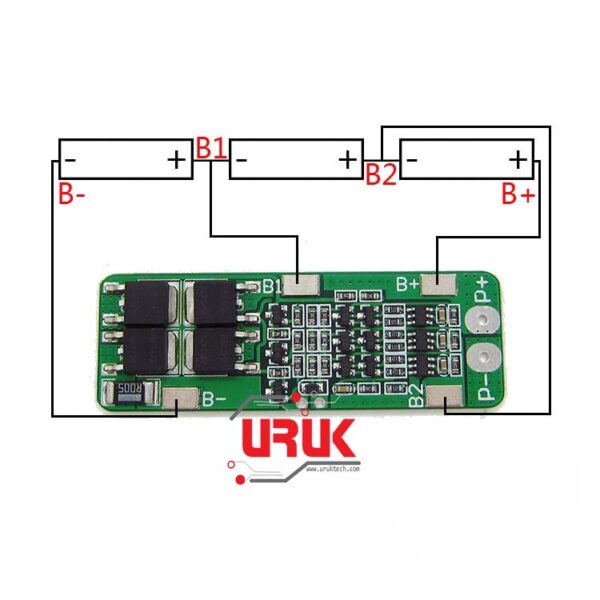

1. Strictly according to the diagram wiring: 0V/4.2V/8.4V/12.6V, Otherwise it will cause damage to the chip.
2. After connection, it need to first charge activation, then will have the output.
3. Do not mix the good battery and poor battery to use. The internal resistance of 3 battery capacity are closer will be better.

Package Includes:
1 x Protection Board

SKU: 949 Categories: ,
  • Suitable range: For nominal voltage 3.6V 3.7V lithium battery (Including 18650, 26650, lithium polymer batteries)
  • Technology: Battery Management System
  • Product Size: 64mmx20mmx3.4mm
  • Material: Metal
  • Charging voltage: 12.6V
  • Maximum output current: 20A
  • Maximum output power / charging power: 252W
