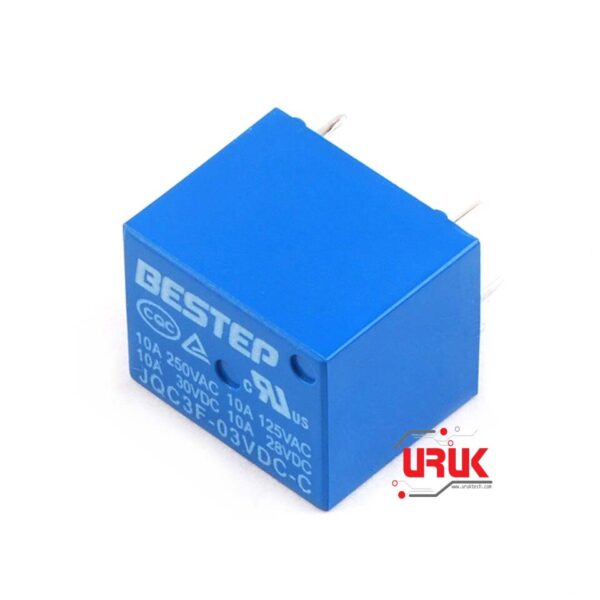

3.3V DC PCB Relay 5 Pins

Availability:

In stock


ريلي Relay يعمل على 3.3 فولت يمكن ربطه مباشرة ببورد الPCB مع بقية الدائرة الالكترونية. قدرة الريلي هي 10 امبير ويتحمل الى حد 250 فولت AC وهو من اشهر الريليات انواعاً في الاستخدام.

1,000 د.ع 1,750 د.ع

In stock

Compare

3.3V DC PCB Relay 5 Pins

This is 5 pin SPDT, PCB plug-in Type power relay. Suitable for domestic appliance, office machine, audio, equipment, automobile, etc. The relay plays the role as a protector or a circuit switch. It can protect your electric equipment very well.

Specifications:
Model: JQC3F-03VDC-C
Coil voltage: DC 3.3V
Coil resistance: 70Ω ~ 80Ω
Contact resistance: 100Ω Max
Operation time: 10msec Max
Release time: 5msec Max
Ambient temperature: -25°C to 70°C
Operating humidity: 45 to 85%RH
Insulation resistance: ≥100M (Ohm)
Between coil & contacts: AC 1500V 50HZ ~ 60HZ/min
Between contacts: AC 1000V 50HZ ~ 60HZ/min
Rated load: 10A 250V AC / 10A 125V AC / 10A 30V DC / 10A 28V DC
Size: 1.8 x 1.5 x 1.6cm (L x W x H)

Application:
Domestic appliance, office machine, audio, equipment, automobile, etc.

Package Includes:
1 x 3.3V DC PCB Relay 5 Pins

SKU: 981 Category: Tag:
  • Model: JQC3F-03VDC-C
  • Coil voltage: DC 3.3V
  • Coil resistance: 70Ω ~ 80Ω
  • Contact resistance: 100Ω Max
  • Operation time: 10msec Max
  • Release time: 5msec Max
  • Ambient temperature: -25°C to 70°C
  • Operating humidity: 45 to 85%RH
  • Insulation resistance: ≥100M (Ohm)
  • Between coil & contacts: AC 1500V 50HZ ~ 60HZ/min
  • Between contacts: AC 1000V 50HZ ~ 60HZ/min
  • Rated load: 10A 250V AC / 10A 125V AC / 10A 30V DC / 10A 28V DC
  • Size: 1.8 x 1.5 x 1.6cm (L x W x H)
