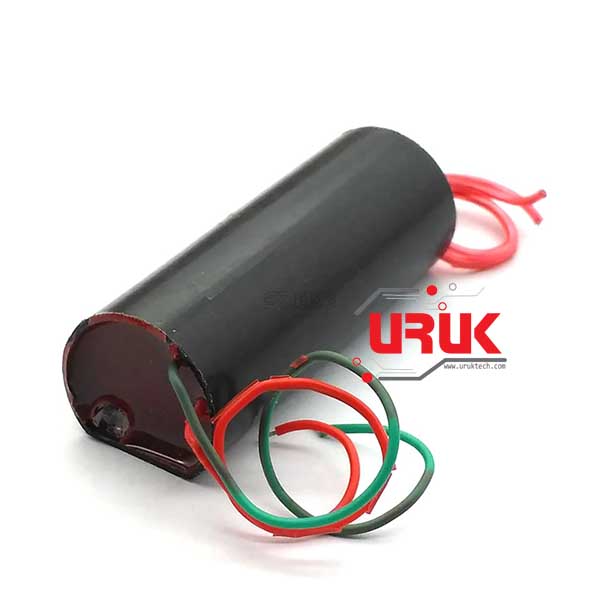

3V-6V to 400kV Boost Step up High Voltage Module

Availability:

In stock


مودل رافع للفولتية من 3-6 فولت الى 400 كيلو فولت. يستخدم في العديد من التطبيقات التي تحتاج الى نبضات كهربائية بفولتيات عالية ولفترة قصيرة. يرجى الانتباه الى الحذر عن استخدام المودل وترك مسافة مناسبة عنه عند التشغيل عند الفحص واجراء التجارب، ولا ينصح بجعل دائرة الاخراج مفتوحة بدون حمل. عدم الدراية باستخدام هذا المودل ممكن ان يتسبب بأضرار وصعق بالجسم.

5,000 ع.د

In stock

3V-6V to 400kV Boost Step up High Voltage Module

Specifications
Input voltage: DC 3V to 6V
Input current: 2A – 5A
High pressure type: the type of pulse current
Output voltage: 400,000v (Please be careful with safety)
High pressure discharge distance between: 10mm – 20mm
The output high voltage wire length: 100mm
Input power cord length: 100 mm (the red line is positive)

Wiring:
Red and green power connection red line: “+” green line “-“
Output: the other side, same color cable

Caution:
This high-voltage module should avoid the use of electricity in high voltage no-load. (Power must be adjusted to a suitable distance to the high-voltage output line, battery capacity is proportional to the distance and the use of the high-pressure arc (not a voltage as high as possible, you must provide enough current). Experimental test of the arc distance from short to long, do not exceed the maximum arc distance electricity, energy cannot be released due to high pressure, can easily damage the module. )
When you work or test: intermittent, continuous work does not allow more than 1 minute and the output side does not allow shorting. Improper voltage and long working hours easily damaged module

Package Includes:
1 Pcs DC 3v-6v to 400kV 400000V Boost Step-up Power Module High-voltage Generator
