433MHz Radio Telemetry Air-Ground Kit for APM 2.6 2.8 Pixhawk

Availability:

In stock


 تيليمتري 433MHz خاص بطائرات الدرون (Quadcopter) … يربط المودل الاول في الطائرة والثاني مع الكومبيوتر حيث يمك التحكم في مسار الطائرة واستلام معلومات المتحسسات وغيرها من الامكانيات الاخرى وخصوصا توجيه المهام. التيليمتري هو مفتوح المصدر اي يمكن التعديل عليه وهو مخصص لمتحكمات الطيران الاوتو بايلون من نوع Pixhawk و APM حيث يربط بشكل مباشر بهذه المتحكمات بأسلاك خاصة متوفرة مع التيليميتري

32,250 ع.د

In stock

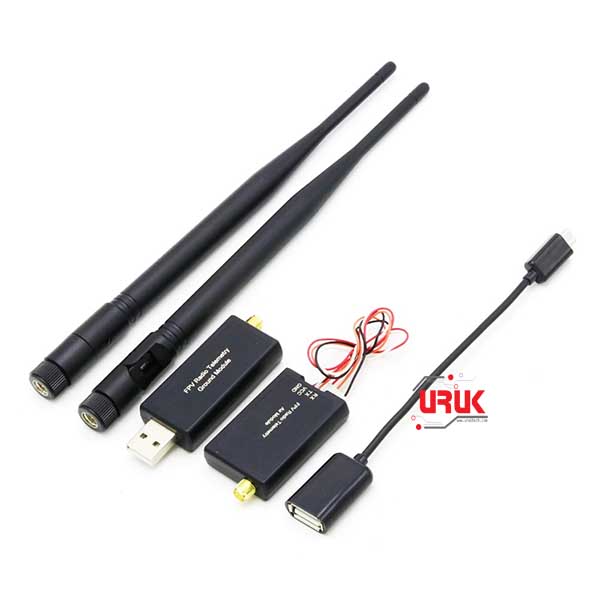

433MHz Radio Telemetry Air-Ground Kit for Pixhawk APM 2.6 2.8

This 3DR Radio is the ideal way to setup a telemetry connection between your (APM or Pixhawk controller) and a ground station. Small, inexpensive and with great range, the radio uses an open source firmware which allows us to do things that cannot be done with other radios.

Radio Features:
– Very small size
– Light weight (under 4 grams without antenna)
– Available in 433MHz variants
– Receiver sensitivity to -121 dBm
– Transmit power up to 20dBm (100mW)
– Transparent serial link
– Air data rates up to 250kbps
– Range of approx 1 mile
– MAVLink protocol framing and status reporting
– Frequency hopping spread spectrum (FHSS)
– Adaptive time division multiplexing (TDM)
– Support for LBT and AFA
– Configurable duty cycle
– Built in error correcting code (can correct up to 25% data bit errors)
– Demonstrated range of several kilometers with a small omni antenna
– Can be used with a bi-directional amplifier for even more range
– Open source firmware
– AT commands for radio configuration
– RT commands for remote radio configuration
– Adaptive flow control when used with APM
– Based on the HopeRF HM-TRP radio module, featuring an SiLabs Si1000 RF microcontroller.

Package Includes:
2 x 915MHz Telemetry module
2 x 1x 5P-6P serial cable for APM
1 x 6P-6P serial cable for Pixhawk
2 x Antenna
2 x Case

SKU: 952 Categories: ,
  • Very small size
  • Light weight (under 4 grams without antenna)
  • Available in 433MHz variants
  • Receiver sensitivity to -121 dBm
  • Transmit power up to 20dBm (100mW)
  • Transparent serial link
  • Air data rates up to 250kbps
  • Range of approx 1 mile
  • MAVLink protocol framing and status reporting
  • Frequency hopping spread spectrum (FHSS)
  • Adaptive time division multiplexing (TDM)
  • Support for LBT and AFA
  • Configurable duty cycle
  • Built in error correcting code (can correct up to 25% data bit errors)
  • Demonstrated range of several kilometers with a small omni antenna
  • Can be used with a bi-directional amplifier for even more range
  • Open source firmware
  • AT commands for radio configuration
  • RT commands for remote radio configuration
  • Adaptive flow control when used with APM
  • Based on the HopeRF HM-TRP radio module, featuring an SiLabs Si1000 RF microcontroller.
