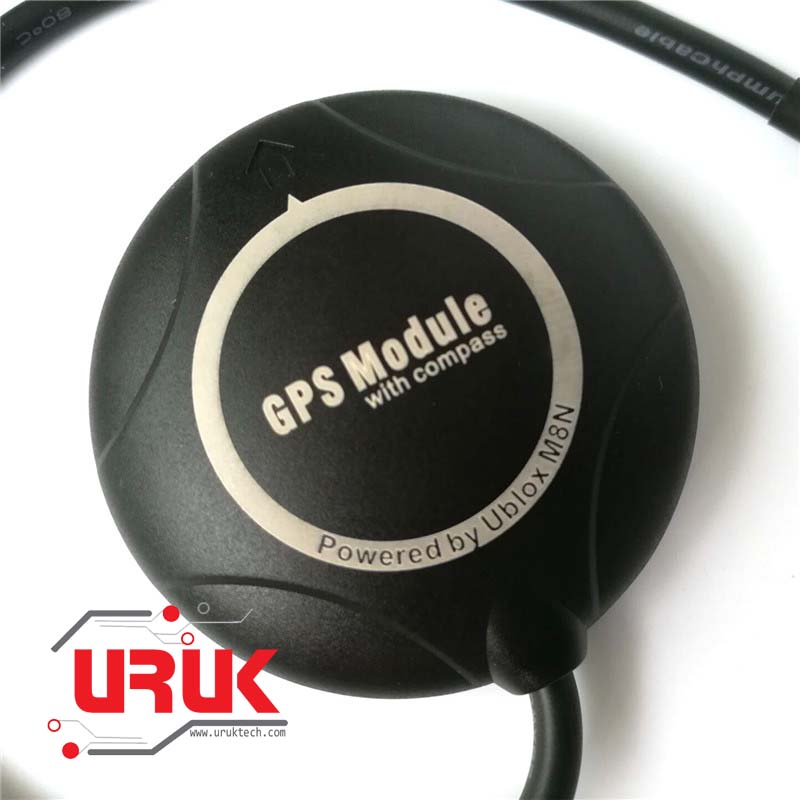

GPS Module NEO-M8N with Shell for APM & Pixhawk

Availablity:

In stock


Compare

GPS Module NEO-M8N with Shell for APM & Pixhawk

31,000 IQD

In stock

GPS Module NEO-M8N with Shell for APM & Pixhawk

Ublox GPS NEO-M8N, with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.4-1.6 meters accuracy, support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol and mode or more.

GPS Chip Parameters:
– Receiver type 72-channel Ublox M8 engine
– GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
– SBAS L1 C/A: WAAS, EGNOS, MSAS
– Galileo-ready E1B/C (NEO-M8N)
– Nav. update rate1 Single GNSS: up to 18 HZ
– Concurrent GNSS: up to 10 Hz
– Position accuracy: 2.0m CEP
– Acquisition Cold starts: 26 s
– Aided starts: 2 s
– Reacquisition: 1.5 s
– Sensitivity  to Tracking & Nav: –167 dBm
– Cold starts: –148 dBm
– Hot starts: –156 dBm
– Assistance AssistNow GNSS Online
– AssistNow GNSS Offline (up to 35 days)3
– AssistNow Autonomous (up to 6 days)
– OMA SUPL & 3GPP compliant
– Oscillator TCXO (NEO-M8N/Q),
– Crystal (NEO-M8M)
– RTC crystal Built-In
– Noise figure On-chip LNA (NEO-M8M).
– Anti-jamming Active CW detection and removal.
– Supported antennas Active and passive
– Odometer Travelled distance
– Data-logger for position, velocity, and time
– Operating temperature: –40° C to 85° C
– Storage temperature:–40° C to 105° C
– RoHS compliant (lead-free)
– Qualification according to ISO 16750
– Manufactured and fully tested in ISO/TS 16949 certified production sites
– Uses Ublox M8 chips qualified according to AEC-Q100
– Supply voltage 1.65 V to 3.6 V
– Power consumption: 23 mA @ 3.0 V (continuous)
– Power Save Mode: 5 mA @ 3.0 V (1 Hz, GPS mode only)
– Backup Supply: 1.4 to 3.6 V

Package Includes:
1 x NEO M8N GPS Module with Shell

SKU: 313-GPSM8N Categories: ,
  • Receiver type 72-channel Ublox M8 engine
  • GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
  • SBAS L1 C/A: WAAS, EGNOS, MSAS
  • Galileo-ready E1B/C (NEO-M8N)
  • Nav. update rate1 Single GNSS: up to 18 HZ
  • Concurrent GNSS: up to 10 Hz
  • Position accuracy: 2.0m CEP
  • Acquisition Cold starts: 26 s
  • Aided starts: 2 s
  • Reacquisition: 1.5 s
  • Sensitivity  to Tracking & Nav: –167 dBm
  • Cold starts: –148 dBm
  • Hot starts: –156 dBm
  • Assistance AssistNow GNSS Online
  • AssistNow GNSS Offline (up to 35 days)3
  • AssistNow Autonomous (up to 6 days)
  • OMA SUPL & 3GPP compliant
  • Oscillator TCXO (NEO-M8N/Q),
  • Crystal (NEO-M8M)
  • RTC crystal Built-In
  • Noise figure On-chip LNA (NEO-M8M).
  • Anti-jamming Active CW detection and removal.
  • Supported antennas Active and passive
  • Odometer Travelled distance
  • Data-logger for position, velocity, and time
  • Operating temperature: –40° C to 85° C
  • Storage temperature:–40° C to 105° C
  • RoHS compliant (lead-free)
  • Qualification according to ISO 16750
  • Manufactured and fully tested in ISO/TS 16949 certified production sites
  • Uses Ublox M8 chips qualified according to AEC-Q100
  • Supply voltage 1.65 V to 3.6 V
  • Power consumption: 23 mA @ 3.0 V (continuous)
  • Power Save Mode: 5 mA @ 3.0 V (1 Hz, GPS mode only)
  • Backup Supply: 1.4 to 3.6 V
