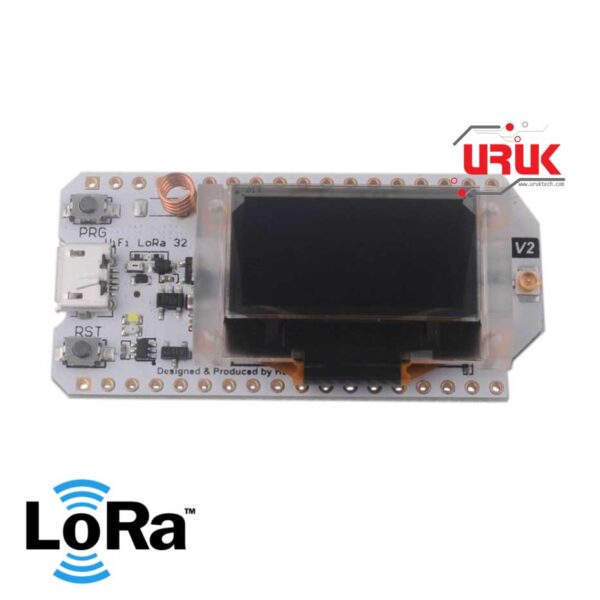

LoRa 868MHz Module for IoT with OLED Display Integrated Wifi and BLE Bluetooth

Availability:

In stock


Compare

موديل 3 في 1 ، موديل يحوي بروتوكول LoRa WAN بتردد 868MHz والذي يؤمن اتصال لغاية 2.8 كيلومتر في الأماكن المفتوحة مع  احتوائه على واي فاي وبلوتوث ومعزز بشاشة OLED مدمجة. حيث ان بروتوكول LoRa هو من احدث بروتوكولات الاتصالات والاهم في تطبيقات انترنت الاشياء IoT وذلك لقلة استهلاك الطاقة والتغطية البعيدة. المودل يعمل على المتحكم ذاته ESP32 بسرعة معالجة تصل الى 240MHz والخاص بالواي فاي مع بروتوكول الاتصال LoRa WAN والبلوتوث الاعتيادي و بلوتوث BLE. المودل يعمل بفولتية من 3.3 الى 7 فولت مع امكانية ربط بطارية وشحنها من البورد ذاته (البطاريات متوفرة في تطبيق وموقع اوروكتيك). يمكن برمجة المودل عبر برنامج الاردوينو ذاته وتوجد مكتبة متكاملة خاصه به وباوامر مباشرة مع Documentation لشرح جميع التفاصيل الخاصة بالمكتبة لتشغيل الـ LoRa WAN والشاشة.

49,000 ع.د

In stock

LoRa 868MHz Module for IoT with OLED Display Integrated Wifi and BLE Bluetooth

WIFI Kit series is the new development of the cost-effective networking program, the main chip using ESP32, LX6 dual-core processor, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth).
This product is based on the WIFI Kit 32 added SX1276 chip, that is, LoRa trade remote modem, Applicable frequency: 868MHz  frequency, about -148dBm high sensitivity, +20 dBm power output, high reliability, transmission distance (measured open area communication distance 2.6Km).

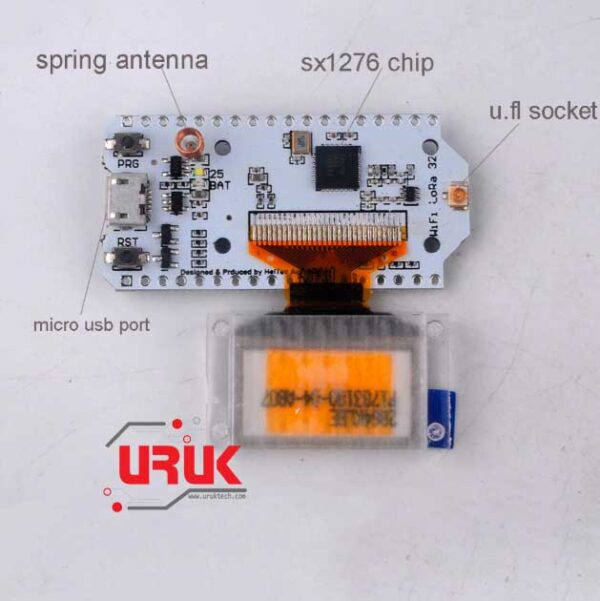

Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for Arduino development environment, can be very simple and fast for program verification and product development.

Module Specifications:
– Flash: 32MBits
– Processor: for Tensilica LX6 Dual Core
– Master chip: ESP32
– LoRa chip: SX1276
– Support frequency band: 868MHZ
– Open communication distance: 2.8KM
– Computing capacity: up to 600DMIPS
– Dual-mode Bluetooth: traditional Bluetooth and BLE low-power Bluetooth
– Development environment: perfect support for Arduino
– Operating voltage: 3.3-7V
– Operating temperature range: -40-90 ℃
– Receiver sensitivity: -139dBm (SF12, 125KHZ)
– UDP continuous throughput: 135Mbps
– USB adapter chip: CP2102
– Support mode: Sniffer, Station, softAP and Wi-Fi Direct
– Transmit power: [email protected], [email protected], [email protected]
– Data rate: 150Mbps @ 11n HT40, 72Mbps @ 11n HT20, 54Mbps @ 11g, 11Mbps @ 11b

U.FL IPEX to SMA Connector
– Connector type: ipex
– Band definition: 868MHz
– Standing wave ratio: <= 1.5
– Gain: 3dBi
– Maximum power: 10W
– Input impedance: 50O mega

See the Arduino Library

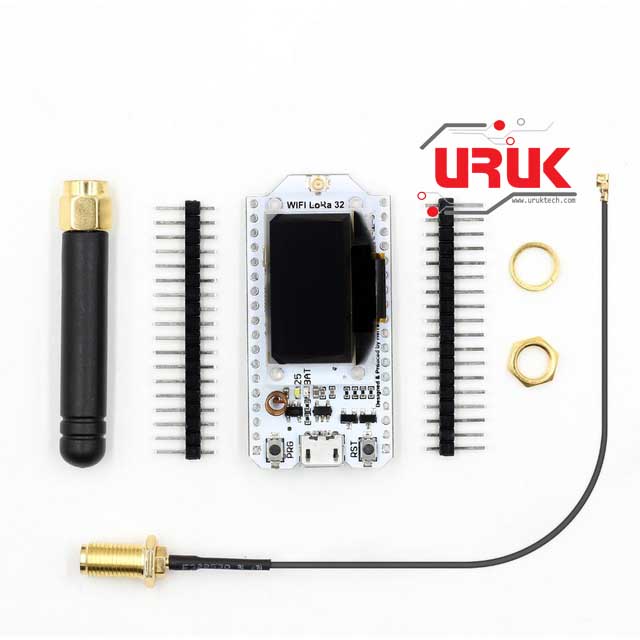

Package Includes:
1 X ESP32 Lora OLED development board
2 X Pin header
1 X U.FL IPEX to SMA Connector Antenna 868mhz
1 x Antenna

SKU: 709 Categories: , ,

Module Specifications:

  • Flash: 32MBits
  • Processor: for Tensilica LX6 Dual Core
  • Master chip: ESP32
  • LoRa chip: SX1276
  • Support frequency band: 868MHZ
  • Open communication distance: 2.8KM
  • Computing capacity: up to 600DMIPS
  • Dual-mode Bluetooth: traditional Bluetooth and BLE low-power Bluetooth
  • Development environment: perfect support for Arduino
  • Operating voltage: 3.3-7V
  • Operating temperature range: -40-90 ℃
  • Receiver sensitivity: -139dBm (SF12, 125KHZ)
  • UDP continuous throughput: 135Mbps
  • USB adapter chip: CP2102
  • Support mode: Sniffer, Station, softAP and Wi-Fi Direct
  • Transmit power: [email protected], [email protected], [email protected]
  • Data rate: 150Mbps @ 11n HT40, 72Mbps @ 11n HT20, 54Mbps @ 11g, 11Mbps @ 11b



U.FL IPEX to SMA Connector

  • Connector type: ipex
  • Band definition: 868MHz
  • Standing wave ratio: <= 1.5
  • Gain: 3dBi
  • Maximum power: 10W
  • Input impedance: 50O mega
