OSD On-Screen Display (MinimOSD) for ArduPilot

Availability:

In stock


Compare

جهاز OSD اختصار لـOn-Screen Display هذا الجهاز ينربط مع متحكم الطيران الاردوبايلوت APM ومع الكامرة المثبتة في الطائرات المسيرة والدرون حتى يرسل كل البيانات الخاصة بالطيران مثلا الارتفاع والسرعة والميلان والاتجاه والزاوية وبعض المعلومات الاخرى مثلا مستوى البطارية او اي معلومات يحب المستخدم ارسالها يتم دمجها على الصورة المنقولة عبر الكامرة الى المحطة الارضية او اجهزة التحكم واستقبال الصورة.

22,000 IQD

In stock

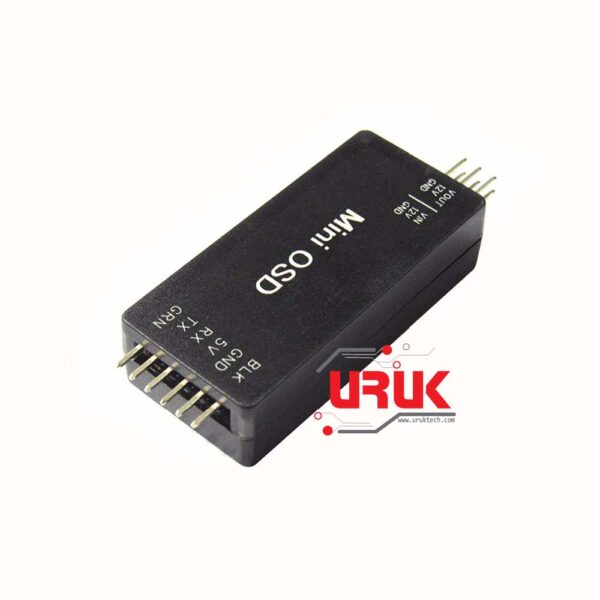

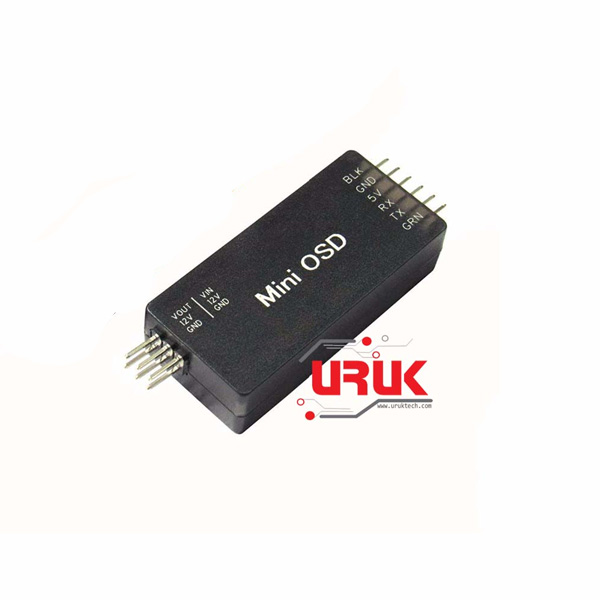

OSD On-Screen Display (MinimOSD) for ArduPilot APM2.0 APM2.5 APM2.6 APM2.8

APM has a companion OSD board called MinimOSD. It reads all the MAVLink data in the APM telemetry stream and overlays it on the video stream if you’re using an on-board camera and wireless video transmitter. This is useful if you’re flying in First Person View (FPV) mode or don’t want to use a laptop at the field to see your telemetry data in the Mission Planner.
This is a mini Arduino based on-screen display board. It’s tailored for use with ArduPilot Mega and the MAVlink protocol, and designed to be as small as possible. It’s main components are an ATmega328P 8 bit microcontroller with an Arduino bootloader, and a MAX7456 monochrome on-screen display. Programming is done through an FTDI-compatible 6-pin cable. It features two independent power and ground sections to isolate the OSD’s analog stage: a +5V section for the ATmega and the OSD’s digital stage, powered through the FTDI cable or other +5V source; and a regulated +5V section for the OSD’s analog stage, powered through the video in/out header and capable of handling up to +12V input.

Features:
– ATmega328P with Arduino bootloader
– MAX7456 monochrome on-screen display
– FTDI cable compatible pinout
– Standard 6-pin ISP header
– Two independent power sections with an LED indicator on each
– Solder jumpers for combining the power sections
– +5V 500mA regulator for up to +12V supply input (5-12v range)
– Solder jumper for PAL video option
– Exposed test points for HSYNC and LOS
– Voltage: 5-12v
– Dimensions: 50 x 18 x 10mm
– Weight 4g

Important note: You cannot connect use the OSD when your APM is also connected via USB (they share the same port). Make sure you disconnect your USB cable from the APM 2 board before attempting to use the OSD.

Package including:

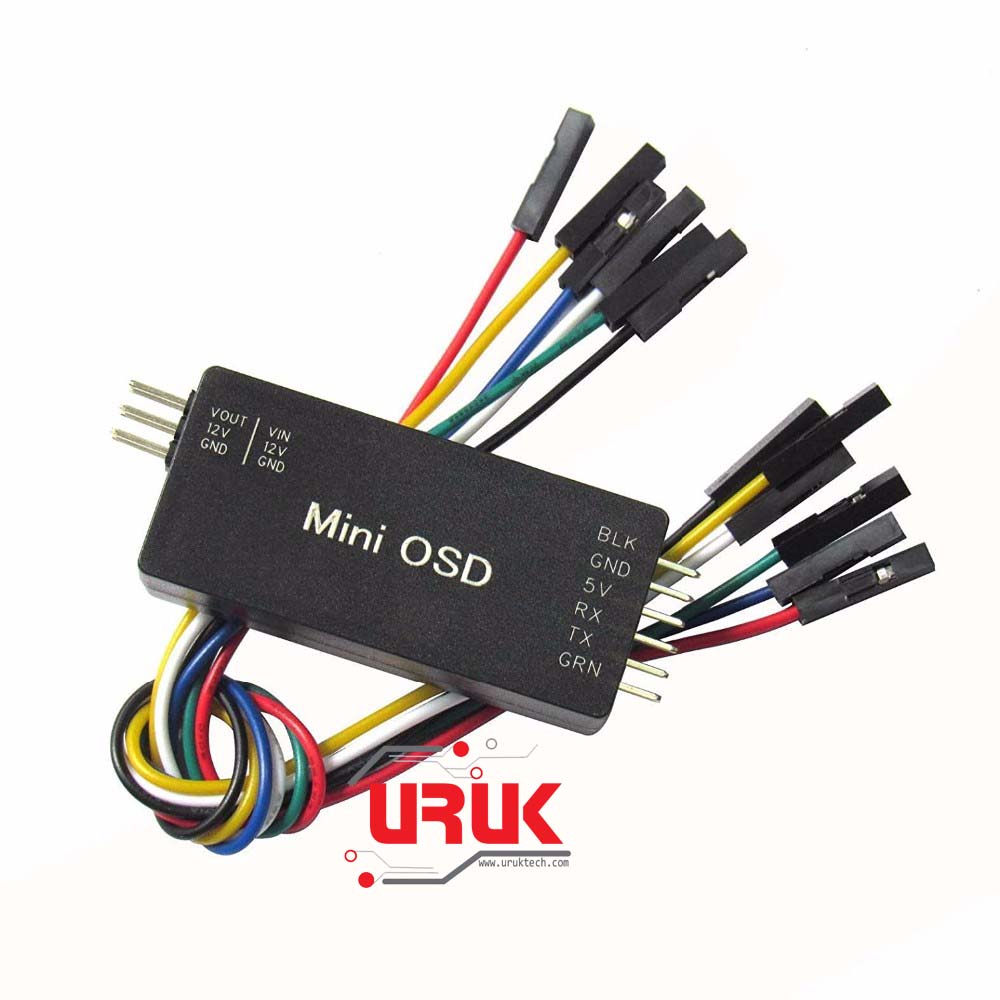

1 x Minim OSD with cover
1 x Set cabels

SKU: 392 Categories: ,
  • ATmega328P with Arduino bootloader
  • MAX7456 monochrome on-screen display
  • FTDI cable compatible pinout
  • Standard 6-pin ISP header
  • Two independent power sections with an LED indicator on each
  • Solder jumpers for combining the power sections
  • +5V 500mA regulator for up to +12V supply input (5-12v range)
  • Solder jumper for PAL video option
  • Exposed test points for HSYNC and LOS
  • Voltage: 5-12v
  • Dimensions: 50 x 18 x 10mm
  • Weight: 4g
