2 Channels 100MHz 1GSa/s Oscilloscope 7 Inch Touching Screen
ADS1013D is a full-featured, highly practical, cost-effective dual-channel flat-panel oscilloscope for the maintenance and R & D industry.
- Intelligent anti-burn，1X can withstand up to 400V withstand voltage.
- 100MHz analog bandwidth @ 1GSa/s sampling rate (1X=5MHz，10X=100MHz).
- Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast.
- Capacitive touching screen, the same as the touching mode of modern mobile tablet, is not a resistive touching screen with ancient nail operation.
- High measurement voltage range, 1X can measure 0~40V, 10X can measure 0~400V，100X can measure 0~4000V.
- Up to 12 parameters measurement: VPP，VP，Vmax，Vmin，Vavg，Vrms，Frequent，Duty+，Duty-，Time+，Time-，Period.
- Cursor measurement function, it is convenient to manually measure the period and frequency and voltage.
- Complete triggering function (single, normal, automatic).
- At any time, the waveform display (pause function) is frozen.
- Equipped with high efficiency One-button AUTO.
- One-button waveform storage and screenshot.
- Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data.
- Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.
- Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis.
- Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals.
- FFT display function, can analyze the spectral characteristics of the signal.
- Built in 6000mAh rechargeable lithium battery, fully charged for 4 hours of continuous use at the highest screen brightness.
- Memory compression technology, waveform refresh screen does not flicker.
Screen brightness adjustment.
- Background grid brightness adjustment.
- Ultra-thin, easy to carry.
Analog band width: 100MHz

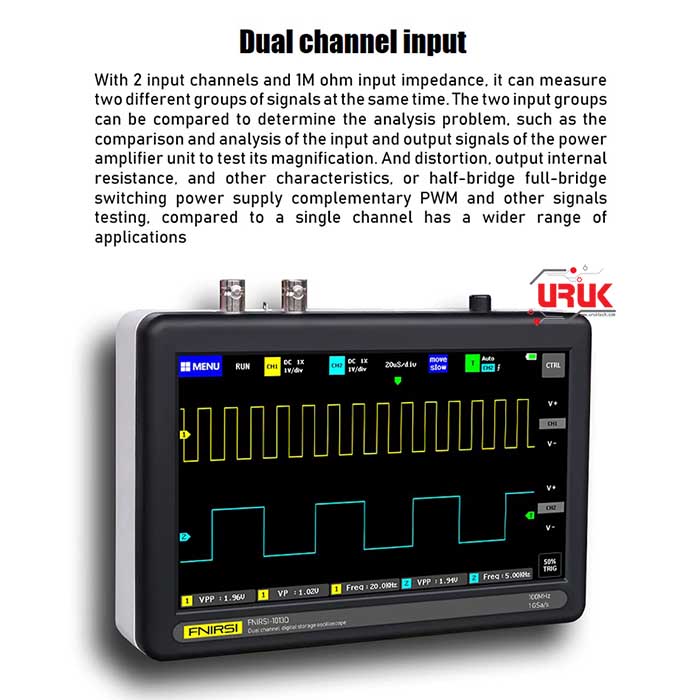

Number of channels: 2 channels
Maximum real time sampling rate: 1GSa/s
Vertical sensitivity: 50mV/div – 500V/div
Horizontal time base range: 50S/div~10nS/div
Maximum test voltage: 40V (1X probe), 400V (10X probe)
Storage depth: 240Kbit
Input resistance: 1M
ADC precision: 8bits
Coupling mode: AC/DC
Trigger mode: Single, Normal, Auto
Trigger edge: Rising edge / Falling edge
External trigger voltage: 0~40V
Display: 7 inch – 800×480
Operating: capacitive touching screen + gesture
Extension ports: USB picture export
Power supply: 1 x lithium battery, 6000mAh (included)
Size: 184x124x50mm / 7.2 * 4.9 * 2.0in
1 x Oscilloscope Host
2 x Matching 100MHz Probe (1X and 10X)
