4 Channels USB DVR Video Capture Card

Availability:

In stock


جهاز DVR نوع USB بأربعة منافذ فيديو ومنفذ واحد للصوت. يمكن من خلال هذا الجهاز ادخال أربعة منافذ فيديو كأن تكون كاميرات تعلم بشكل مباشر او أي مصادر فيديو أخرى بشكل مباشر الى جهاز الكومبيوتر لغرض العرض او المراقبة او التسجيل. يدعم الجهاز ادخال الفيديو بصيغة PAL و NTSC و SECAM مع إمكانية عرض وتسجيل لدقة تصل الى 720×480 وسرعة 30 اطار في الثانية الواحدة. لا يحتاج الى مصدر طاقة خارجي حيث يعمل بشكل مباشر من خلال الـ USB وباستهلاك تيار قليل قدره 250 ملي امبير. يمكن التحكم بالألوان وتفاصيل الفيديو المستلم من خلال عدة برامج داخل الكومبيوتر مثل برنامج OBS المجاني او برنامج WDM الشهير للتسجيل الفيديو وغيره من البرامج الاخرى.

29,000 ع.د

In stock

4 Channels USB DVR Video Capture Card

This is USB 2.0 Video Capture Adapter that send Video to your PC through USB port. It can record Video in DVD/VCD/MP3/4 format and save in hard drive and play Video Game (PS2/3, Xbox 360, Wii….) on PC/Laptop. It has 4 channels video input in one card, the maximum display / recording rate is 25 fps under PAL format, and 30 fps under NTSC format for per channel and it has only 1 channel audio input.



Features

  • Play video game on laptop PC screen through this USB video adapter
  • Video & audio recorded always in sync.
  • Support multiple video inputs of Composite RCA Video
  • Turning your PC into full-featured video recording and editing workstation
  • Super easy setup in minutes
  • Still image capture for photo album
  • More than just watching the video on the laptop or desktop PC, you can also record the full motion video or take a snapshot/still frame image from different devices such as the DV Camcorder, VCR/DVD player, Satellite receiver, video monitoring with your existing security surveillance systems or play video games on PC for various video entertainments.
  • Excellent Video Selector/Switcher: Smooth video source switching between PC, Composite Video input or S-Video input instantly.
  • Supports worldwide video systems including NTSC, PAL & SECAM
  • Snap-shot button for saving still pictures as BMP or JPEG file
  • Resizable Video Window up to full screen display
  • WDM Compatible: It conforms to WDM standard and works with all video software compatible with this standard.
  • Fully compatible with Microsoft’s DirectShow
  • Video Surveillance Interface: Any security CCTV surveillance cameras or camcorders can be connected to this device so you can turn your computer into a video surveillance system/monitor.



Specifications
Dimension: 88mm x 28mm x 18mm
Indication: Green LED for Power
With USB 2.0 connection: the output resolution will be full-screen DVD video resolution up to 720×480 at 30 fps for NTSC and 720 x 576 at 25 fps for PAL

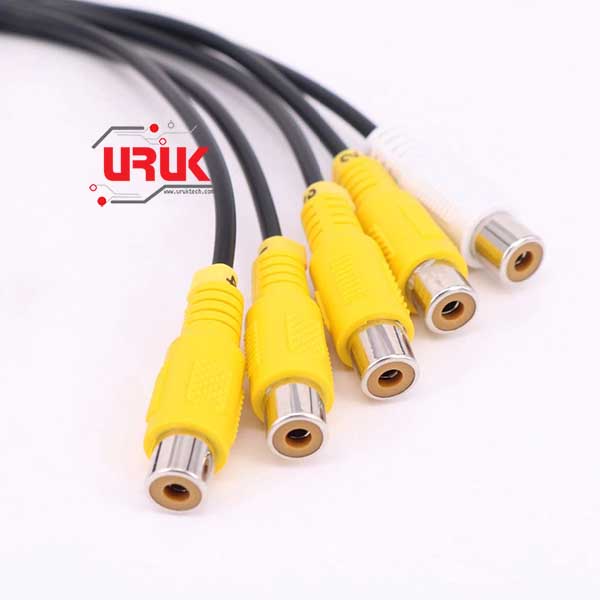

Video input: 4 S-video input and RCA type composite video input
Audio Input: 1 Channel
Video system supported: NTSC, PAL and SECAM
Video Format: Supports all video capturing/ recording formats including DV, MPEG-1, MPEG-2, MPEG-4 with DivX codec, SVCD/VCD, DVD, AVI, WMV
Bit rate: High MPEG bit rate adjustment up to 10000K bps
Color: Supports color adjustment including brightness, contrast, saturation, hue and sharpness control.
Port: USB powered operation, no power adapter needed.
Power Consumption: 5VDC, 250mA(max) through USB port

Recording & Viewing Software

Package includes:
1x 4 Channels USB DVR Video Capture Card

SKU: 431 Category:

Dimension: 88mm x 28mm x 18mm
Indication: Green LED for Power
With USB 2.0 connection: the output resolution will be full-screen DVD video resolution up to 720×480 at 30 fps for NTSC and 720 x 576 at 25 fps for PAL
Video input: 4 S-video input and RCA type composite video input
Audio Input: 1 Channel
Video system supported: NTSC, PAL and SECAM
Video Format: Supports all video capturing/ recording formats including DV, MPEG-1, MPEG-2, MPEG-4 with DivX codec, SVCD/VCD, DVD, AVI, WMV
Bit rate: High MPEG bit rate adjustment up to 10000K bps
Color: Supports color adjustment including brightness, contrast, saturation, hue and sharpness control.
Port: USB powered operation, no power adapter needed.
Power Consumption: 5VDC, 250mA(max) through USB port
