FPGA Xilinx Spartan 6 Development Board

Availability:

In stock


بورد FPGA نوع Xiling Spartan 6 متكامل ذو مواصفات عالية جداً مع كافة الملحقات الخاصة بالربط والبرمجة مناسب لجميع التطبيقات التعليمية والبحثية والصناعية.

288,000 د.ع

In stock

Compare

FPGA Xilinx Spartan 6 Development Board

Features:
– FPGA chip: Main chip is XC6SLX9-2FTG256C, the chip is BGA package, 256 pins. Pin name is in the form of letter + number, such as E3, G3.
– Voltage: 5V, USB interface power supply.
– Crystal oscillator: 50MHz
– PCB layer: 4 layers
– Extended IO number: 68
– SDRAM capacity: 256Mbit
– FLASH capacity: 16Mbit
– VGA color: 65536
– IO port level: 3.3V

Peripheral Interface:
– USB interface power supply, also a USB to serial port.
– A large-capacity 256Mbit SDRAM, can be used as data buffer.
– A 16Mbit SPI FLASH, can be used as FPGA configuration files and user data storage.
– A camera interface, you can connect 5 million pixel camera such as OV5640.
– A 16bit VGA interface, can display 65,536 colors, you can display color images and other information.
– An RTC real-time clock, with battery holder, battery model is CR1220.
– An IIC interface EEPROM 24LC04.
– Four red LED.
– Four user keys.
– A Reset key, reset program for FPGA.
– A CONFIG key, connects to the dedicated FPGA_PROGRAM_B pin, for reconfiguration of the FPGA program.
– On-board 50M active crystal, provides a stable clock source for the development board.
– Two 40-pin standard AX expansion port (2.54mm pitch), 34 IO ports, one 5V power supply, two 3.3V power supply, three GND. It can connect two expansion modules at the same time, such as 4.3-inch TFT module and AD / DA module.
– A JTAG interface, FPGA debugging and program curing.
– A MicroSD card connector, support SPI mode.
– A 6bit digital tube.
– Size: 90mmx130mm

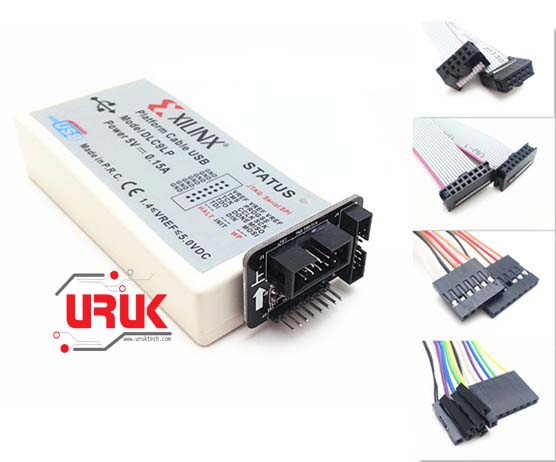

JTAG Programmer:
– Chip: CY7C68013A+XC2C256
– Only this compatible solution supports firmware upgrades perfectly.
– Fully supports all CPLD/FPGA devices on the Xilinx.
– Support JTAG, Slave, Serial, SPI download mode.
– The target device voltage is compatible with the 1.2V-5V, automatically discriminating and adapting to the target board I/O voltage.
– Support for IMPACT and ChipScope.
– Target device Downloader, clock selectable, up to 24 MHz.
– Support multiple operating systems: XP, Vista, 2000, WIN7, WIN8, RedHat, Enterprise, Linux, Linux Enterprise.
– JTAG has a signal isolation processing, perfect protection of your equipment, safe use

See the Installation Guide

Package Includes:
1 x FPGA Spartan 6 development board
1 x Transparent protective plate
1 x USB line
1 x JTAG Programmer with all accessories
