RF Test Board / Network Test Filter / Attenuator RF Demo Kit for NanoVNA

Availability:

In stock


بورد فحص وعرض موجات RF ثابته بمواصفات ثابته لأجهزة الـ Network Analyzer لفحصها او توضيح عملها (الأجهزة متوفرة في تطبيق وموقع اوروكتيك). تحتوي على 18 دائرة مختلفة بشكل مختلف وبمواصفات معينة وجاهزة للتشغيل والفحص مع اسلاك التوصيل. يستخدم أيضاً في مختبرات هندسة الاتصالات وأجهزة فحص معدات الاتصالات الخاصة بأبراج شبكات الهواتف وغيرها.

37,750 د.ع

In stock

RF Test Board / Network Test Filter / Attenuator RF Demo Kit for NanoVNA



Specifications

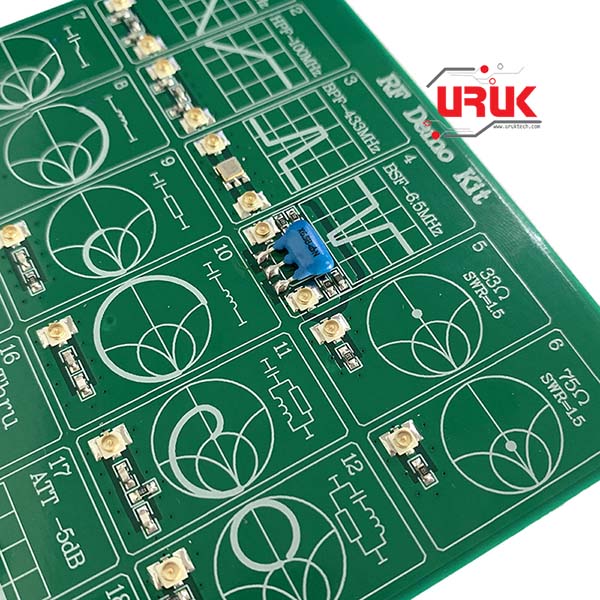

  • PCB board in size of 10 x 10cm
  • Vector network analyzer learner tool
  • 18 set of functional circuits
  • RLC series and parallel circuit 1
  • RLC series and parallel circuit 2
  • 33 ohm resistance, SWR standing wave = 1.5
  • 75 ohm resistance, SWR standing wave = 1.5
  • BSF ceramic trap, center frequency 6.5MHz
  • BPF ceramic filter, center frequency 10.7MHz
  • RC series circuit
  • LC series circuit
  • 9, the capacitor
  • inductance
  • LPF homemade low-pass filter, 3dB bandwidth 400MHz
  • HPF homemade high-pass filter, 3dB bandwidth 500MHz
  • short circuit calibration circuit
  • open circuit calibration circuit
  • 50-ohm load calibration circuit
  • straight through
  • 10dB attenuation circuit
  • 3dB attenuation circuit



Applications:

  • Can be used with NanoVNA-F to measure 6.5M ceramic notch filter
  • Can be used with NanoVNA-F to measure homemade low-pass-filter, 3dB bandwidth about 400MHz



Package Includes:
1 x PCB RF Tester Board
2 x 20cm Adapter Cables
