NANOVNA-F V2 3GHz Vector Network/ Antenna Analyzer with Touch Screen

Availability:

In stock


 جهازNanoVNA V2 هو جهاز محلل شبكات موجة Vector Network Analyzer يعمل ضمن ترددات تتراوح بين 50kHz و 3GHz ضمن حزم الـ HF VHF UHF VNA. قادر على قياس الهوائيات والمرشحات وأجهزة الإرسال المزدوجة ومكبرات الصوت. يحتوي على شاشة تعمل باللمس بقياس 4.3 بوصة ومدعوم ببطارية تبلغ سعتها 5000mAh تكفي لغاية 7 ساعات عمل. الجهاز يدعم الواجهات باللغة الإنكليزية ويحتوي على قطع المعايرة اللازمة ويمكن ربطه مع جهاز الكومبيوتر ليدعم برامج مفتوحة المصدر لعرض القياسات بشكل كامل داخل الكومبيوتر.

329,000 د.ع

In stock

NANOVNA-F V2 3GHz Vector Network/ Antenna Analyzer with Touch Screen

NanoVNA-F V2 portable vector network analyzer is a new generation product developed based on NanoVNA-F. It adopts 4.3-inch IPS LCD screen and aluminum alloy case, standard 5000mAh large-capacity lithium battery, battery life up to 7 hours. It supports touch screen and side button operation, support Chinese and English interface. The design of this product is based on NanoVNA of edy555 and SAA V2 for OwOcomm, and deep optimization of the software is made on the basis of the previous generation product NanoVNA-F. The operation interface is compatible with NanoVNA-F, the measurement range is extended to 3GHz, and the dynamic range is larger. The measurement is more accurate, and the operation is more convenient.



Features

  • 4.3-inch IPS LCD display, resolution 800×480, ultra-wide viewing angle, long-term use does not hurt your eyes;
  • All aluminum alloy case, sturdy and durable, effectively shielding electromagnetic interference to ensure measurement accuracy;
  • The body size is 125mmx75mmx20mm, compact and portable;
  • The radio frequency interface is SMA, which is convenient for connecting all kinds of DUTs;
  • 5000mAh large-capacity lithium battery, battery life up to 7 hours;
  • Full touch screen design, with 3 side buttons at the same time, flexible and convenient operation;
  • Support Chinese and English interface;
  • Optimized UI design, convenient for users to perform measurement operations;
  • Support screen brightness adjustment;
  • The firmware can be upgraded through a virtual U disk, no programmer is needed, and the firmware can be upgraded through the included USB type-c data cable;
  • Standard high-quality calibration parts and RG405 phase-stable cable to ensure calibration accuracy;
  • A USB power output interface is designed to support 5V/1A power output;
  • Using 2A high current charging IC, the charging time is shorter;
  • Supporting host computer software, the host computer supports Chinese and English interfaces;
  • The screen image of the device can be obtained by taking a screenshot of the host computer.



Specifications
Frequency range: 50kHz-3GHz
RF output power: -9dBm (error within 1GHz: ±1dB)
Frequency accuracy: <0.5ppm
S21 dynamic range: 70dB (1.5GHz), 60dB (3GHz)
S11 dynamic range: 50dB (1.5GHz), 40dB (3GHz)
2-port return loss: 20dB type (1.5GHz), 13dB min (3GHz)
Number of calibration points: 101 points
Number of scanning points: 101 points
Number of traces: 4
Number of mark points: 4 (The mark point bar can be moved up and down on the screen)
USB interface: USB Type-C communication mode: CDC (serial)
Setting save: 5 groups (After saving, it can be directly recalled when it is used next time, no need to recalibrate, and the saved parameters before the last shutdown will be automatically recalled when it is turned on next time)
Calibration: Support calibration result interpolation, can measure without recalibration after adjusting the measurement frequency band
Scan time: about 1.9s/1 time (50kHz ~ 3000MHz full frequency band)
Measurement: Can measure S parameters, voltage standing wave ratio, Smith chart, phase, group delay, etc.



Applications
– NanoVNA-F V2 has a high dynamic range and can be used to test UV duplexers
– Measure 915MHz antenna
– Measure 868MHz antenna
– Measure 2.4G microstrip filter



Package Includes:

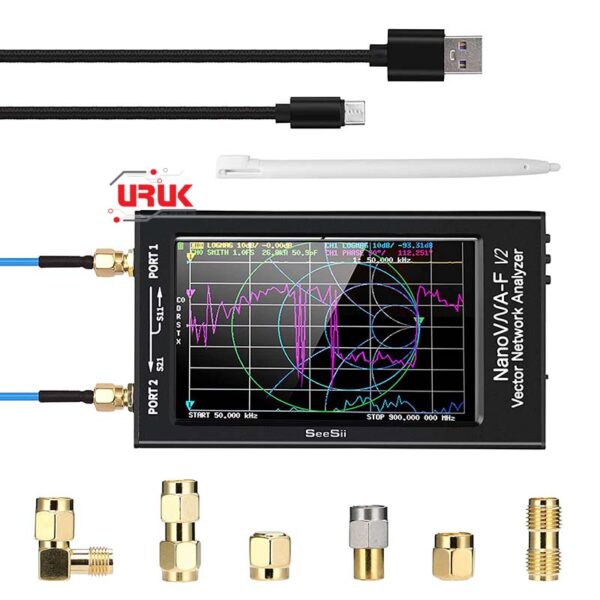

1 x Host Device NANOVNA
1 x Calibration Kit
1 x USB Type-C Data Cable
