Smart GSM/Call Remote Switch/Relay Controller RTU5024

Availability:

In stock


Compare

نظام يعمل بتقنية الـ GSM للتحكم بخط او جهاز واحد، يتم التحكم بالاتصال فقط عبر الهاتف! حيث يمكن الاطفاء والتشغيل بأتصال واحد وبدون اي تكلفة حيث ان الأتصال لن يجاب وفقط يتم التحكم. لا يستقبل هذا النظام اي اتصال الا من الارقام التي يتم تحديدها، حيث يمكن تحديد 200 رقم للتحكم ويمكن جعل النظام الذكي ان يرسل رسل رسالة لتأكيد اتمام عملية التحكم. يجهز بـ 12V ويعمل على جميع شبكات الهواتف في العراق وغير العراق.

59,000 ع.د

In stock

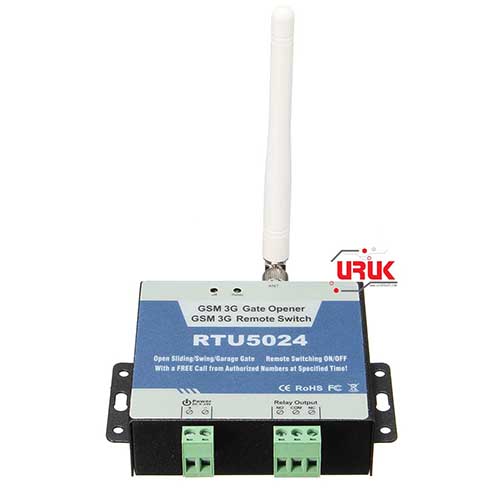

Smart GSM/Call Remote Switch/Relay Controller RTU5024

This GSM gate opener features remote on/off switch by authorized phone free calls, which can be operated from anywhere, no distance limit, very convenient.

Features:
– 850/900/1800/1900MHz quad bands, can work in the worldwide GSM networks.
– No call charges. The GSM Relay Switch answers the call from authorized number then carries out the turn ON/OFF action on the first ‘ring’.
– Secure Using caller-ID for identification, unknown callers are ignored.
– Add or remove users by SMS Text command.
– No need to provide a remote control or keys for different users.
– Up to 200 authorized phone numbers can be configured at the specified time.
– The relay action will return a SMS confirmation to the owner or authorized call in number, this function is editable by user.
– The relay close or open time is programmable.

Applications:
Multiple applications like light, water pump, motor automation, Gates, bollards, barriers, garage doors, shutters and access doors or machines.

Specifications:
– Model: RTU5024
– GSM Frequency: 850/900/1800/1900MHz (all GSM network in Iraq)
– Digital Output: NC/NO dry contact, 3A/240VAC
– DC Power Supply: 9-15VDC/2A
– Power Consumption: 12V input Max. 50mA/Average 25mA
– SIM Card: Standard SIM Card
– Antenna: 50Ω SMA Antenna interface
– Temperature Range: -20~+60°C
– Humidity Range: Relative humidity 90%
– Dimensions: Approx. 82x76x27mm
– Package Weight: Approx.  223g

Package Includes:
1 x RTU5024 GSM Gate Opener Controller
1 x User Manual

SKU: 408 Categories: ,
  • Model: RTU5024
  • GSM Frequency: 850/900/1800/1900MHz (all GSM network in Iraq)
  • Digital Output: NC/NO dry contact, 3A/240VAC
  • DC Power Supply: 9-15VDC/2A
  • Power Consumption: 12V input Max. 50mA/Average 25mA
  • SIM Card: Standard SIM Card
  • Antenna: 50Ω SMA Antenna interface
  • Temperature Range: -20~+60°C
  • Humidity Range: Relative humidity 90%
  • Dimensions: Approx. 82x76x27mm
  • Package Weight: Approx.  223g
