AD9850 DDS Signal Generator Module 40MHz Sine & Square Wave


In stock

كارت توليد الموجات الجيبية والمربعة وبتردد يصل الى 40MHz يعمل على فولتية من 3.3 الى 5 فولت يمكن من خلاله توليد موجود جيبية او مربعة وبالتردد المطلوب لتشغيل الأجهزة المطلوب التحكم بها او التي تحتاج الى موجات تشغيل كالعاكسات وغيرها. يمكن للكارت توليد موجتان جيبية sinewave وموجتان مربعة Square wave في نفس الوقت.

39,750 د.ع

In stock


AD9850 DDS Signal Generator Module 40MHz Sine & Square Wave

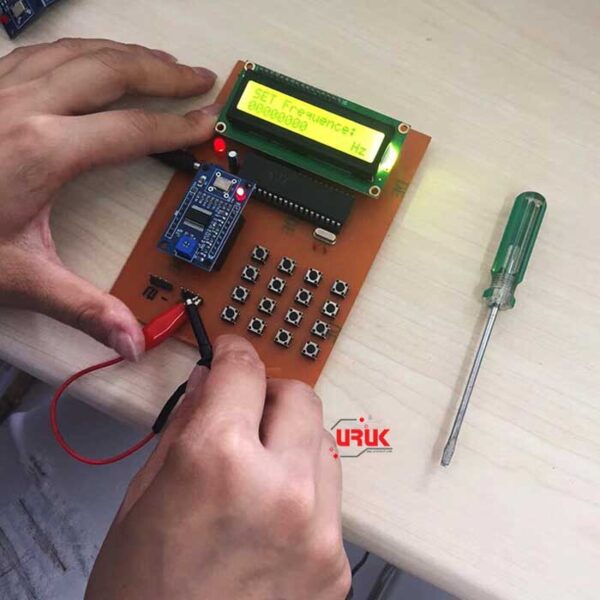

The AD9850 DDS Signal Generator Module provides 0-40MHz sine and square waves. It is equipped with a powerful 125Mhz Oscillator and excellent for a signal generator and oscilloscope-based projects.
The module has a small compact size. In such a small size, the module can be fitted in any signal generation projects. It has two square wave channels and two sine wave channels. It can work from 3.3V to the 5V input voltage.


Operating Voltage Range: 3.3V – 5V
Output Frequency Range: 0-40MHz
Digital Output Continuous Current: 0.005 A
DAC Output Current: 0.03 A
Storage Condition: -40~ +80°C
Operating Temperature Range: -40~ +85°C
Dimensions: (50x30x20mm) L×WxH


More details about pinout and connection with MCU:


Package Includes:
1 x AD9850 DDS Signal Generator Module
