Handheld LCD Digital Tachometer RPM Speed Measurement

Availability:

In stock


جهاز قياس سرعة الدوران (تاكو ميتر) بدقة عالية تصل الى 0.1 دورة في الدقيقة. يسمى ايضاً RPM Meter ويستخدم لقياس سرعة دوران المحركات والعجلات وجميع القطع الدوارة لسرعة تصل الى 99999 دورة في الدقيقة حيث يعمل بالليزر ويمكن توجيه الليزر الى القطعة التي تدور بعد لصق عليها قطعة لاصقة بيضاء اللون وهي مرفقة ايضاً مع لقياس السرعة بشكل مباشر حيث ان القراءة يتم تحديثها خلال 0.8 ثانية أي اقل من ثانية واحد ويحتوي على ميزة الخزن لخزن اخر قراءة واقل واعلى قراءة. يمكن اخذ القراءة من بعد يصل الى 20 سم.

20,750 د.ع

In stock

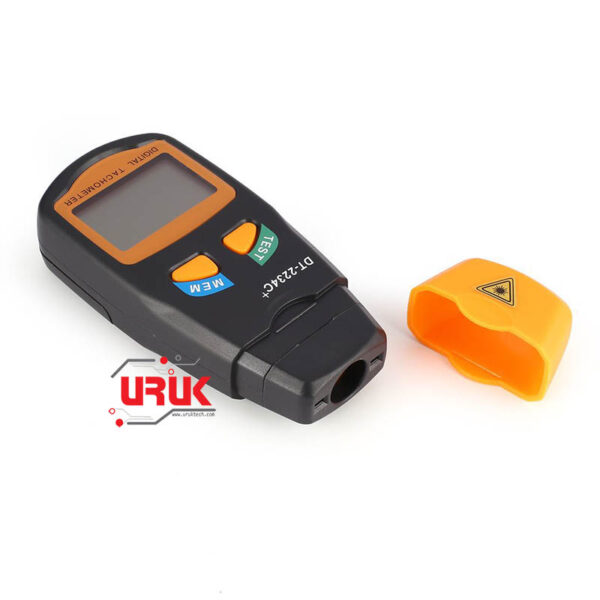

Handheld LCD Digital Non-contact Tachometer RPM Speed Measurement

This digital tachometer is used to detect rotate speed of motor. It takes the microcontroller as the core, photoelectric speed sampling processing, realizing non-contact measurement speed. Widely used in motor, fan, washing machine, automobile, airplane, and other industries.



Features:

  • Accurate measurement, use laser for accurate measurement, measuring distance from 50 to 200mm.
  • Automatic record, automatically record the maximum value, minimum value, and final value.
  • Power indicator, low battery indicator, data storage and non-contact measurement.
  • Portable, compact, and lightweight, easy to carry and carry.



Specifications:
Model: DT2234C+
Color: Gray & Orange
Measuring Range: 2.5RPM~99999RPM
Measuring Distance: 50 ~ 200mm
Accuracy: ± (0.05%+1)
Resolution: 0.1 RPM (2.5 to 999.9RPM), 1 RPM (over 1000RPM)
Memory: Max/Min/Last value
Power Supply: 1 x 9V Battery (Not included)
Sampling Rate: 0.8sec. (over 60RPM)
Size: 127 x 58 x 25mm

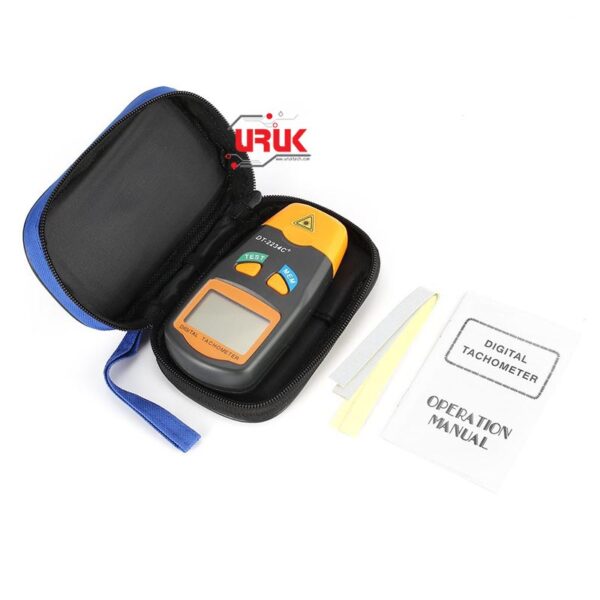

Package Includes:
1 x Digital Tachometer
3 x Adhesive tape
1 x Carrying Bag

SKU: B043 Category:
  • Model: DT2234C+
  • Color: Gray & Orange
  • Measuring Range: 2.5RPM~99999RPM
  • Measuring Distance: 50 ~ 200mm
  • Accuracy: ± (0.05%+1)
  • Resolution: 0.1 RPM (2.5 to 999.9RPM), 1 RPM (over 1000RPM)
  • Memory: Max/Min/Last value
  • Power Supply: 1 x 9V Battery (Not included)
  • Sampling Rate: 0.8sec. (over 60RPM)
  • Size: 127 x 58 x 25mm
